About

BASE PRICE: $33,735

Truck Fitment Recommendations

  • ¾-Ton Truck Market (2500’s)
  • 1-Ton Truck Market (3500’s)

Truck Bed Requirements

  • MUST GO ON FLATBED or TRAY STYLE BOX
  • All Tray Builds Are Custom Made To Accommodate Your Truck’s headache Rack
  • All Trays Are Built To Fit and Customization Charges May Be Instilled If Tray Is Larger Than Standard Floor Dimensions
A red truck parked in the snow with an rv trailer.

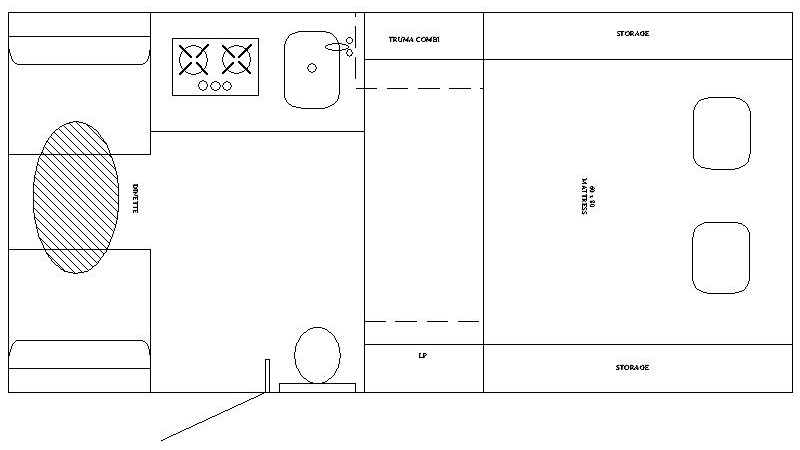

A floor plan of the interior of an rv.

Specifications

When Equipped with Standard Equipment:

Dry Weight: 1,675 Pounds/Certified Wet Weight: 2,000 Pounds
Closed Body Height: 67” {Exterior measurement from floor to top of roof vent closed}
Interior Height Open: 78”
Interior Height Closed: 57”
Exterior Width: 80”
Overall Length: 165”
Overall Floor Length: 87” {does not include approach angle}
Mattress to Roof Height Open: 27”
Mattress to Roof Height Closed: 5”
Fresh Water Capacity: 32 Gallons
Cassette Toilet Waste Capacity: 4.75 Gallons
Fridge Capacity: 2.5Cu. Ft. {12v Compressor style}

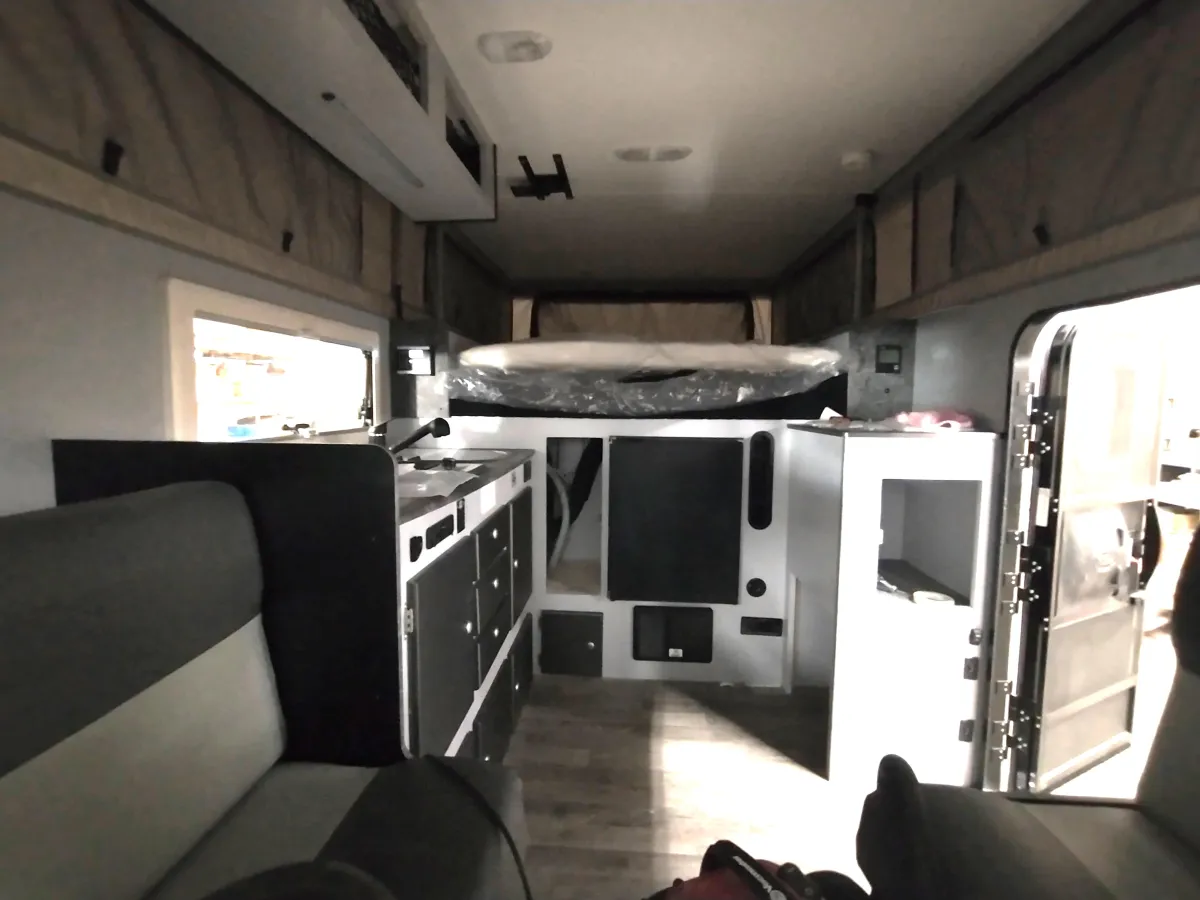

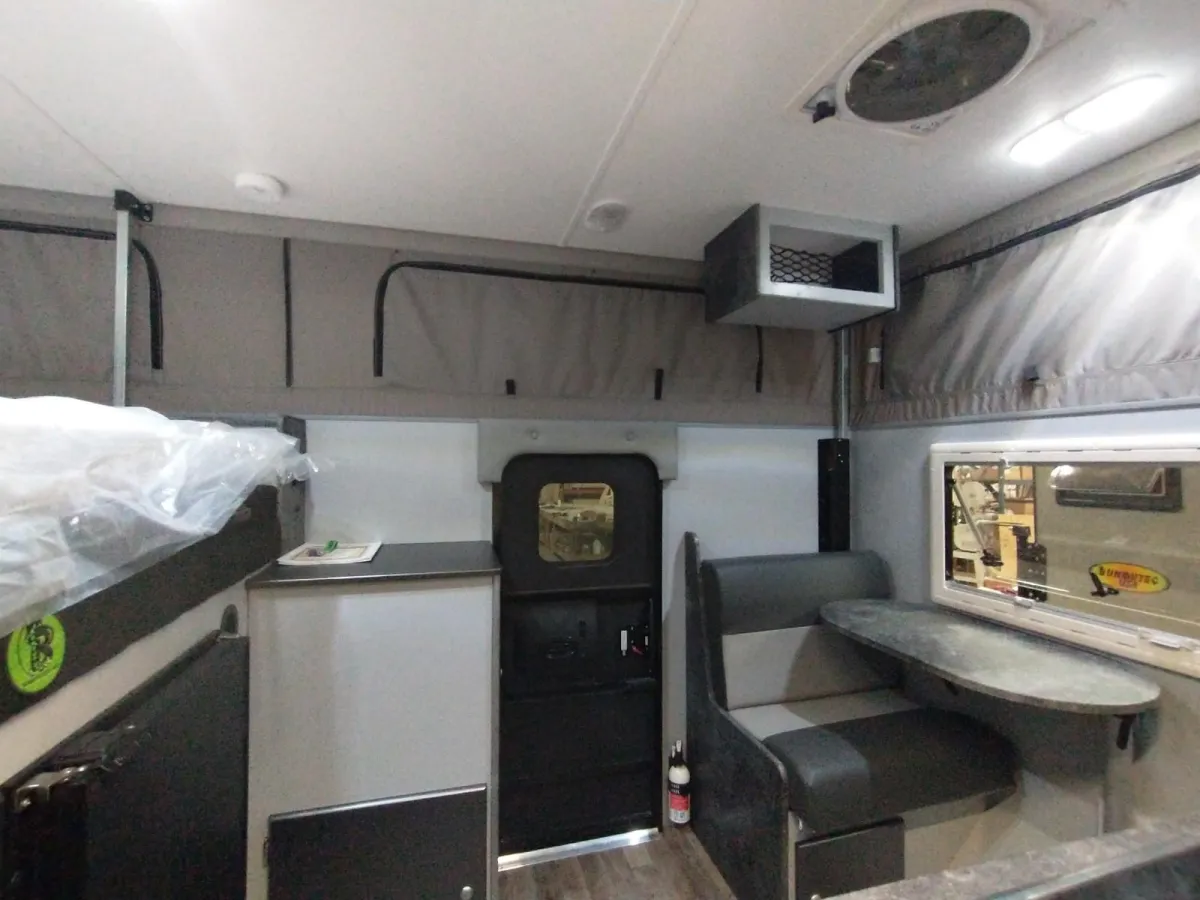

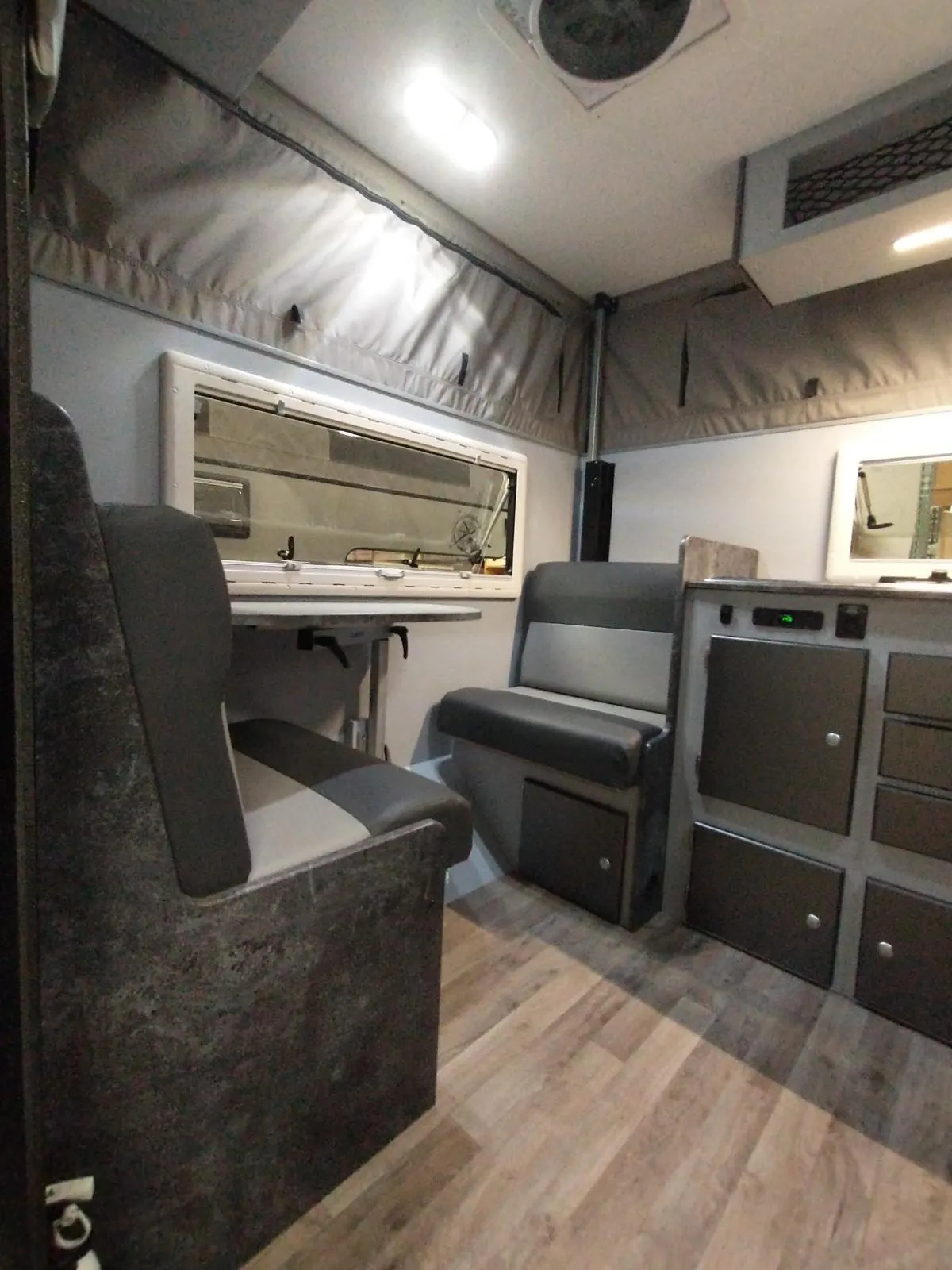

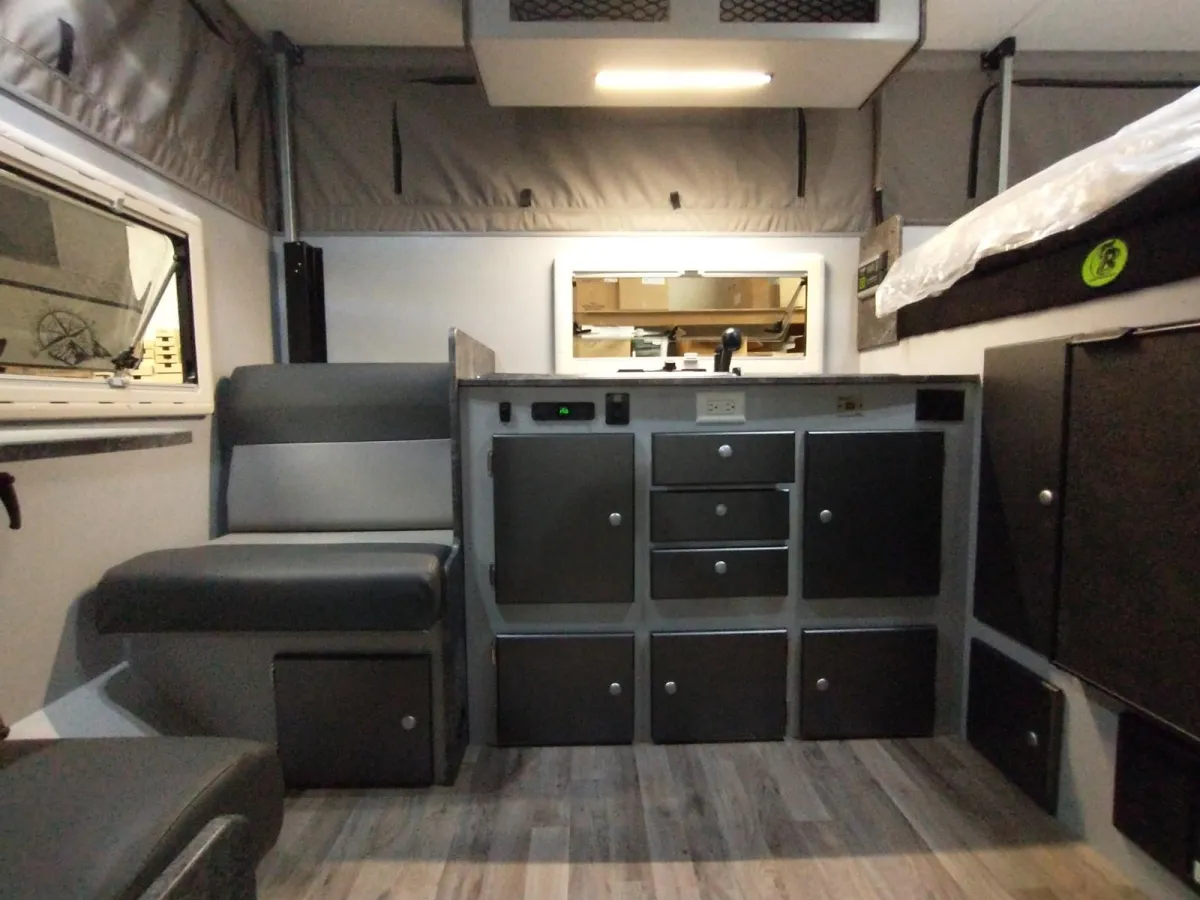

The inside of an rv with a desk and chairs.

Standard Equipment

4 Post Electric Interior Lift System
4 Corner Manual Crank Loading Jacks
12v Compressor Refrigerator
35amp Converter (Lithium Compatible)
MaxxAir Deluxe Roof Vent/Fan
190-Watt Roof Solar Charging System
Complete LED Lighting
Interior USB Connections
Interior Volt Meter Display
Interior GFCI Outlet (active on shore power only)
Cabover Entry Bunk Ladder
North/South Queen Size Mattress

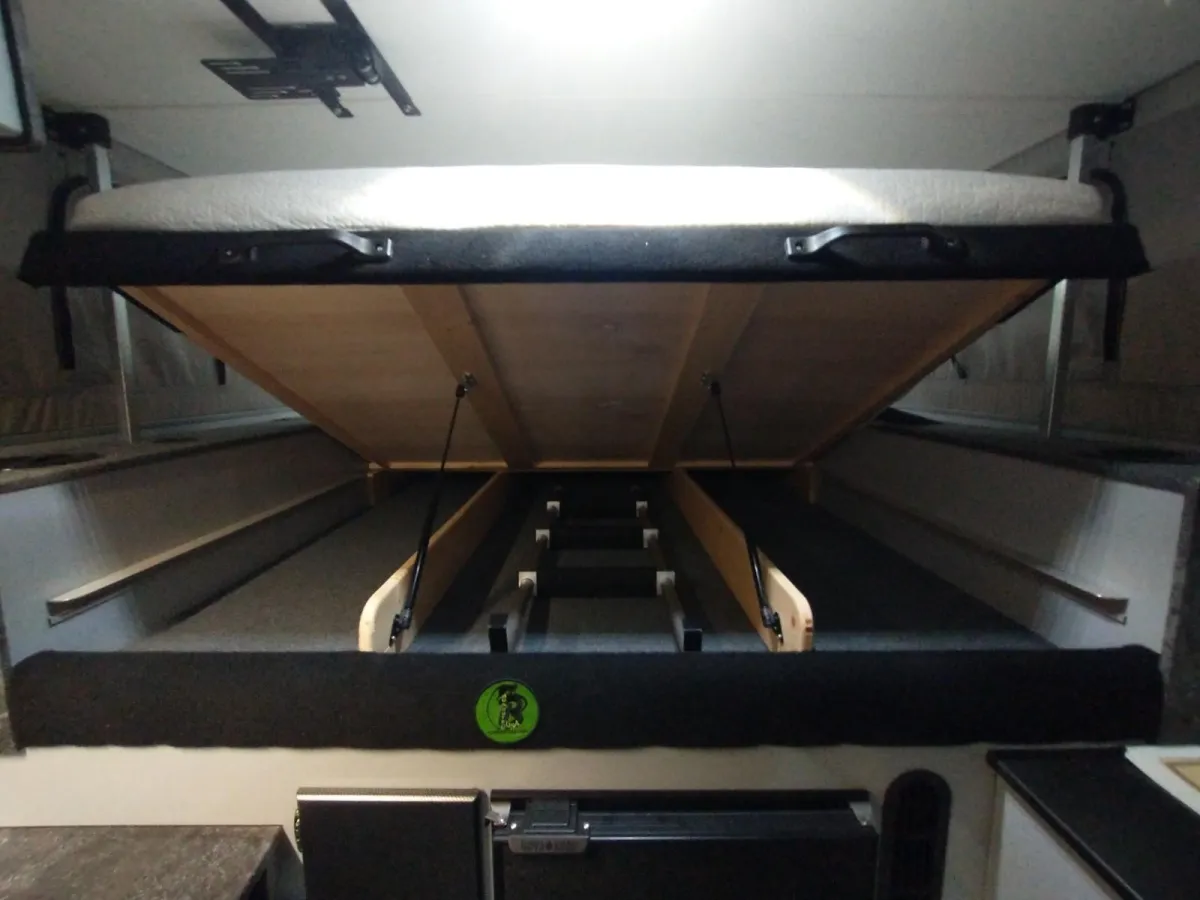

Side Hamper & Under Bed Storage
Shore Power Inlet Connection
Rear 7-way RV Plug Connection
Folding Entry Door Assist Handle

Single Glass Top Sink + Pull-Out Faucet
Pressurized Water System
Fresh Water Tank (32-Gallons)
Gravity Water Fill
360-Degree Swivel Table Leg
Truma Combi Eco + Water Station & Exterior Shower Port
Built-In Swivel Cassette Toilet
2 Burner Glass Top Stove
Upright 20-LB Propane Bottle
Aluminum & Fiberglass Exterior
Insulated Windows with Built-In Screen & Shade
Screened Entrance Door with Deadbolt Lock + Tinted Window
Exterior Locking Storage
Single G27AGM Battery

Customize Your Order With These Options & Upgrades

(These options and upgrades may require construction changes so need to be included at time of order)



DESCRIPTION:

WEIGHT:

PRICE:



Single Overhead Cabinet w/Netting Over Kitchen

18

$150



Single Overhead Cabinet w/Netting Over Toilet

18

$150



Insulated Skylight

20

$480



Truma Aventa Roof Air Conditioner (Note: AC Will Only Work On Shore Power)

88

$2,965



Additional 190-Watt Roof Solar Panel

25

$550



Remote Exterior Loading Jacks

33

$1,600



Single Lithium Battery Upgrade (Note: Does NOT Include DC/DC Charger)

(35)

$925



Tray Package Install + Torklift Fastguns

N/A

$1,150



(These options & upgrades can be added at any time during or after construction)



Description:

Weight:

USD Price:

Reflective Cold Weather Tent Panel Covers

5

$550

Cell Phone Booster

7

$745

BunduBox (16x16x10 Storage Box)

14

$560

Exterior Shower/Privacy Room

14

$540

Exterior Fuel Can + Locking Mount

4

$150

Torklift Glow Scissor Step

31

$465

Torklift All-Terrain Scissor Step Feet

2

$190

Rear Crank-Out Awning (78″)

33

$1,200

Side Crank-Out Awning (96″)

42

$1,100

Manual Wrap-Around 90-Degree Awning (96″)

49

$1,210
